Variable frequency drives give facilities efficient, flexible motor-speed control, but they also change how electrical systems behave. A properly selected Isolation transformer can be part of a broader strategy for separating a drive from upstream disturbances, but it is not a universal answer to every VFD problem.
Dependable motor control starts with treating the source, VFD, motor, conductors, grounding system, protective devices, controls, and driven load as one system. When one part is overlooked, the result can be nuisance trips, communication faults, motor insulation stress, bearing damage, unstable speed, or excessive heat.
Why Power Quality Matters In VFD Systems
Power quality describes whether electrical power is delivered at a stable, usable voltage and frequency with acceptable distortion and noise. Important terms include harmonics, which are unwanted frequency components; voltage sags and swells, which are short reductions or increases in voltage; phase imbalance; transients; and common-mode noise. Any of these conditions can affect drives, motors, transformers, programmable controls, sensors, and communications equipment on shared distribution systems.
VFDs are valuable because they match motor speed to process demand. They are widely used on pumps, fans, conveyors, mixers, blowers, and compressors.
How VFDs Affect Electrical Power
What Happens Inside A VFD
A typical drive first rectifies incoming AC power into DC, smooths it in the DC link, then uses an inverter to create a variable-voltage, variable-frequency output for the motor. The inverter switches rapidly through pulse-width modulation. This allows precise speed control, but neither the input current nor the output waveform behaves exactly like a utility sine wave.
Why Nonlinear Loads Matter
The input stage draws current in pulses rather than evenly throughout each AC cycle. Those pulses can create harmonic current, which may produce voltage distortion as it passes through transformers, feeders, generators, capacitors, and other shared equipment. In facilities with many drives or a weak electrical source, the combined effect can consume capacity and create heat where it is least expected.
Common Power Quality Problems
Harmonics, Sags, And Transients
Current harmonics can contribute to hotter transformers, overloaded neutral conductors in some systems, capacitor problems, nuisance protective-device trips, and reduced usable capacity. Voltage harmonics are what connected equipment actually sees. The broader concepts behind power quality measurement and analysis help explain why readings should be taken at meaningful points, particularly near the point of common coupling.
Voltage sags may occur when large motors start, a utility fault develops, or feeder switching takes place. Swells can follow load rejection or switching events. Repeated short disturbances may be more disruptive than a single event because they trigger undervoltage or overvoltage alarms, interrupt production, and complicate troubleshooting. Lightning, fault clearing, and switching can also introduce fast transients that require properly coordinated surge protection.
Imbalance And Output-Side Stress
Unequal phase voltage can increase motor current imbalance and heating. On the motor side, rapid VFD switching can create reflected-wave voltage stress on long cable runs, along with electromagnetic interference. These output-side concerns are different from poor incoming power, even though both may appear as drive alarms or motor failures.
VFD System Design Checklist
- Confirm motor data: Verify voltage, full-load current, horsepower, speed range, insulation rating, service factor, and suitability for inverter duty.
- Review the load: A pump or fan has different torque behavior than a conveyor, compressor, or mixer.
- Evaluate the source: Consider available fault current, voltage stability, generator operation, transformer capacity, and other large loads on the feeder.
- Measure cable distance: Long motor leads may increase reflected-wave stress, noise, and filtering needs.
- Check grounding and bonding: Use methods consistent with equipment instructions, applicable codes, and site conditions.
- Plan for heat and protection: Account for enclosure temperature, ventilation, breakers, fuses, overload settings, surge protection, and continuous loading.
Mitigation And Installation Practices
Each mitigation method has a distinct purpose. Line reactors add impedance and reduce current peaks. Passive harmonic filters target selected harmonic conditions, while active filters can respond to changing loads. Input isolation may limit disturbance transfer between a drive and part of the upstream system. Output filters manage fast voltage changes and motor-side stress. Shielded motor cable can reduce interference when its shield is terminated correctly.
Installation quality is equally important. Keep VFD cooling paths clear, select an enclosure suited to the environment, and separate power conductors from low-level control and communication wiring. Route motor cables away from sensitive signal lines where practical. Bond panels, equipment frames, and cable shields correctly. Qualified personnel should design, install, test, and service the system, especially where altitude, humidity, contamination, generator supply, or unusual temperatures affect equipment ratings.
Testing, Monitoring, And Maintenance

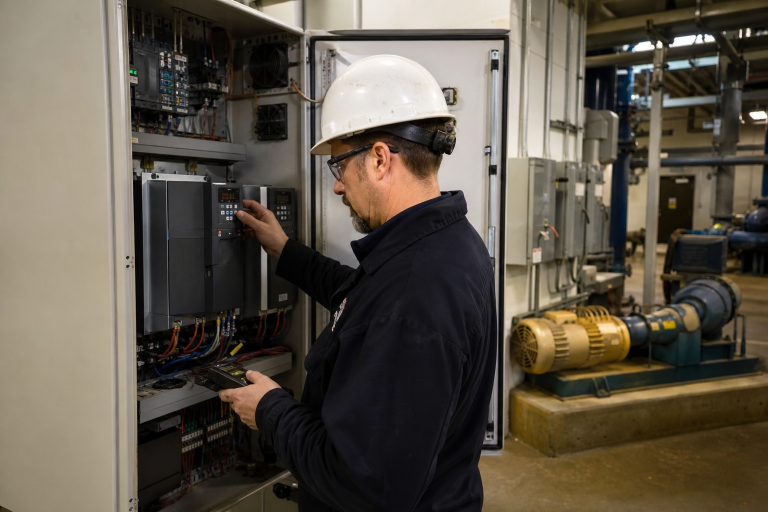

Start troubleshooting with evidence. Record phase-to-phase incoming voltage, compare current across motor phases, review drive alarm history, and inspect connections for looseness, discoloration, or heat damage. Thermal imaging during normal operation can reveal overloaded conductors, failing terminations, or inadequate cooling. Where harmonic concerns exist, capture voltage and current data at the point of common coupling and document readings before and after changes.
For example, a pumping station begins experiencing repeated VFD trips after a large motor is added to the same feeder. Rather than immediately installing a filter, the maintenance team measures voltage during starts, checks drive logs, compares phase currents, and reviews motor-cable routing and grounding. The data may show a source-side sag caused by the added load, or it may uncover a separate output-side cable or bonding issue.
A simple plan supports long-term reliability: inspect alarms, cooling paths, visible wiring, and enclosure cleanliness monthly; review temperatures, motor current, and trip trends quarterly; and inspect terminations, protection, grounding, and power quality annually. Repeat critical tests after adding drives, generators, long cable runs, or major electrical loads.
Final Takeaways
Reliable VFD operation begins before the drive is energized. Harmonics are only one part of the power-quality picture. A complete review of source conditions, motor compatibility, cable length, grounding, protection, installation practices, and operating data gives maintenance teams a practical path to stable motor control and less unnecessary downtime in 2026.
